17-4PH Stainless Steel Powder

상하이 트루어 기술 유한회사

17-4PH Stainless Steel Powder

17-4PH also is called as Nr. 1.4542 (DIN EN X5CrNiCuNb16-4) or UNS S17400.

17-4PH is a martensitic, precipitation-hardening stainless steel, known for its wide range of mechanical properties through low-temperature heat treatment (aging), because it contains rich elements, Cr, Ni, Cu and Nb/Ta.

17-4PH powder produced by gas atomization, but also can by PREP for better sphericity and lower hollow particles, typically is used in additive manufacturing, particularly Laser Powder Bed Fusion (LPBF) and electron bean melting.

Its As-printed parts can be further strengthened by aging to reach tensile strength exceeding 1300MPa and hardness up to 40HRC, while retaining good ductility.

사양
구성Fe: Bal, Cr: 15-17, Ni: 3-5, Cu: 3-5, Nb: 0.15-0.45
입자 크기-25μm, -45μm, 15-45μm, 15-53μm, 20-63μm, 45-105μm, 53-150μm 또는 맞춤형
녹는점1404°C / 2560°F
결정 구조BCT

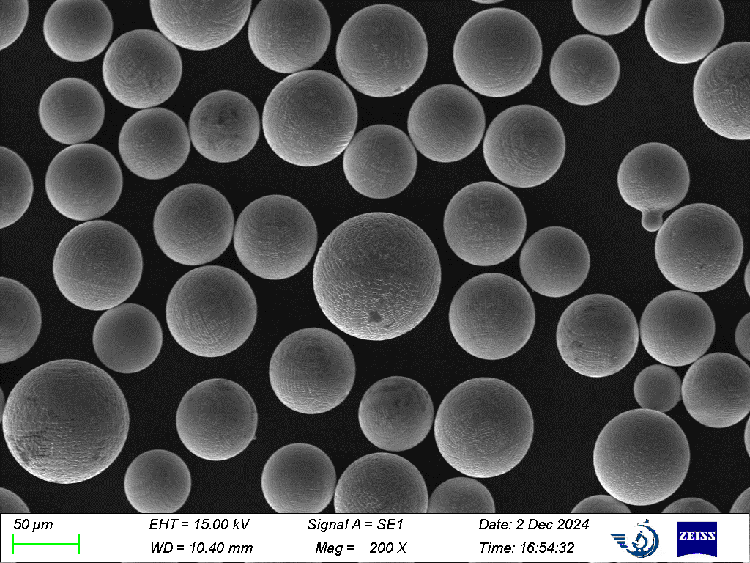

SEM 사진

17-4PH Stainless Steel Powder

제작: PREP

제품 원가
수량(kg)가격(USD)
1-50$30-40
50-200$25-30
200-500$22-25
>500$20-22
참고: 가격은 시장 상황에 따라 예고 없이 변경될 수 있습니다.

제품 패키지

금속 합금 분말 포장
